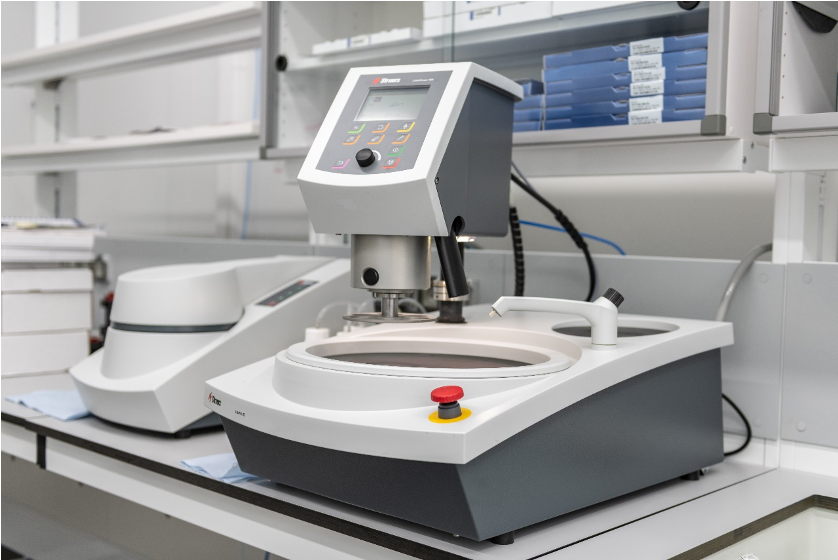

Automatic grinding and polishing machine LaboPol-30+LaboDoser-100+LaboDoser-100
Grinding and polishing machine LaboPol-30 is designed for quick grinding and polishing of samples with speed control from 50 to 500 rpm. In addition, the LaboPol-30 is equipped with a LaboForce-100 semi-automatic rotator for 6 samples and a LaboDoser-100 dosing unit for automatic delivery of diamond suspensions to the polishing zone. LaboPol-30 grinding and polishing machine is equipped with grinding wheels to work with various materials.
Production year, manufacturer, country of manufacture: 2019, Struers, Denmark
Technical characteristics:
The diameter of the drive wheel – 300 mm
Rotation speed of the drive wheel – 50-500 rpm
Range of adjustment of water supply or polishing slurry – program volume adjustment from 0-10 where 0 – no feed, 3 – 1 drop\sec, 7 – a few drops\sec, 10 – a thin stream
The maximum number of samples in the automatic grinding and polishing mode is a carousel for 6 samples with diameter 40 mm, a carousel for 6 samples with diameter 25 mm.
|
